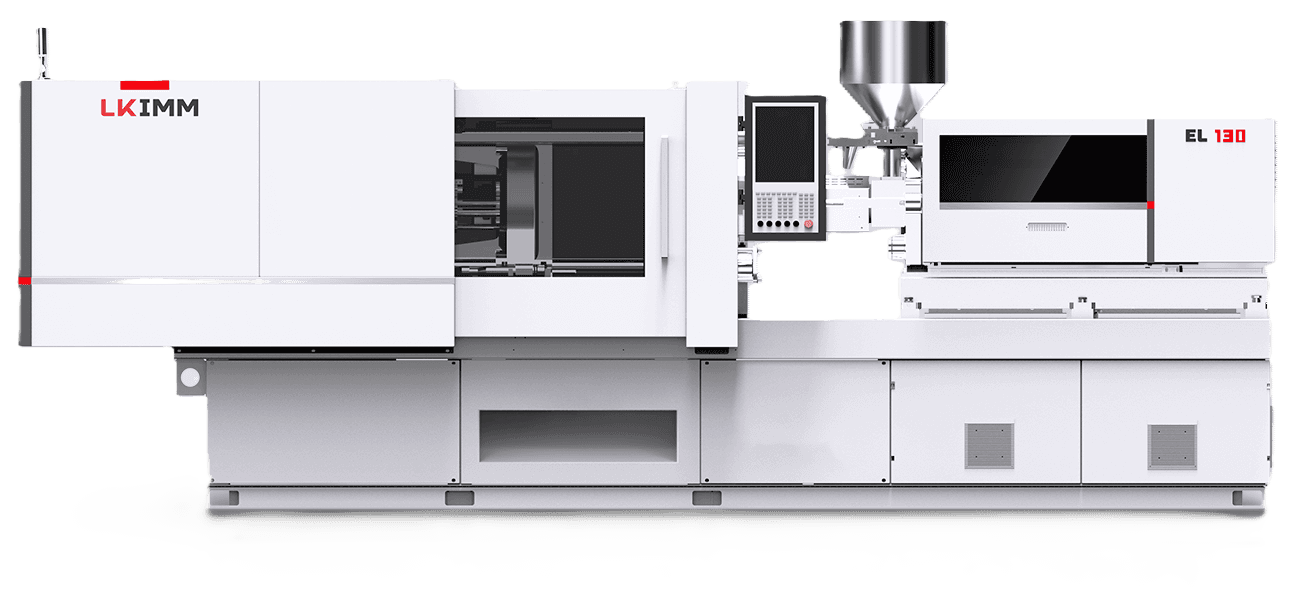

ELETTRICA All-Electric Series
The latest servo motor control technology, X86 high-speed central processor, large storage capacity, powerful computing power, open platform and OPC-UA are ready to fully meet all production requirements.
OVERVIEW
About ELETTRICA All-Electric Series
The ELETTRICA series is LK's all-electric injection molding platform, engineered for manufacturers who need precision, cleanliness, and energy efficiency that hydraulic systems cannot match. The series spans three tiers — base Elettrica, Elettrica-E, and Elettrica-S — covering clamping forces from 600 kN to 4,000 kN (60 to 400 tons) across applications ranging from medical cleanroom molding to high-speed thin-wall packaging.
The base Elettrica series is built for precision and cleanroom manufacturing, using non-contact tie bars that completely isolate the moving platen from contact, minimizing contamination risk — critical for medical consumables like syringes, petri dishes, and pipettes. Low-inertia mechanical assembly combined with parallel axis synchronous motion enables end-position tolerances down to 0.01mm, while ultra-sensitive protection logic monitors speed and torque in real time to instantly respond to foreign object intrusions during clamping.
The Elettrica-E series focuses on energy efficiency and Industry 4.0 readiness, eliminating hydraulic loop friction losses entirely to achieve 40-80% energy savings over standard hydraulic machines, with a 95%+ net power utilization rate and zero risk of oil leaks or seal degradation — making it ideal for sterile white-room environments. The EP700 industrial controller uses high-speed EtherCAT bus synchronization for real-time SPC processing, with native OPC-UA and Modbus-TCP support for direct integration into MES/ERP smart factory systems.
The Elettrica-S series is a hybrid servo-electric and servo-hydraulic platform purpose-built for hyper-speed multi-cavity applications, achieving opening and dosing velocities up to 1,500 mm/s and injection speeds up to 500 mm/s. Heavy-rigidity vibration damping frames and oversized alloy tie bars are engineered specifically to withstand sub-second structural cycles at these speeds, making this tier the choice for high-volume thin-wall food packaging, medical caps, and in-mold labeling (IML) applications.
Across all three tiers, ELETTRICA machines serve medical disposables and consumables, electronic and electrical components (connectors, relays, micro-switches), high-end home appliance parts, and thin-walled premium packaging where cycle speed and dimensional consistency are equally critical.
ELETTRICA Model Specifications
| Model | Clamping Force (kN) | Max Daylight | Screw Diameter | Pump Motor Power |
|---|---|---|---|---|
| EL60 / ELE60 | 600 | 640mm | 22/26/30mm | Cleanroom/Energy-efficient |
| EL100 / ELE100 | 1,000 | 870mm | 26/28/30mm | Cleanroom/Energy-efficient |
| EL130 / ELE130 | 1,300 | 950mm | 32/28/36mm | Cleanroom/Energy-efficient |
| ELS300 | 3,000 | 1,250mm | 55mm | High-Speed (1,500mm/s opening) |
| ELS400 | 4,000 | 1,450mm | 58mm | High-Speed (1,500mm/s opening) |
Frequently Asked Questions
Base Elettrica focuses on cleanroom precision with 0.01mm tolerances, ideal for medical components. Elettrica-E emphasizes energy efficiency (40-80% savings) and Industry 4.0 connectivity via EtherCAT and OPC-UA. Elettrica-S is a hybrid high-speed platform for thin-wall packaging, reaching injection speeds up to 500 mm/s for multi-cavity applications.
The ELETTRICA series spans 600 kN to 4,000 kN (60 to 400 tons) across its three sub-series, covering models from EL60/ELE60 up to ELS400.
The Elettrica-E series achieves 40% to 80% energy savings compared to standard hydraulic machines by eliminating hydraulic loop friction losses entirely, with a net power utilization rate above 95%.
ELETTRICA machines serve medical disposables and consumables (syringes, pipettes, petri dishes), electronic components (connectors, relays, micro-switches), high-end home appliance parts, and thin-walled premium packaging.
The base Elettrica series achieves end-position tolerances down to 0.01mm through low-inertia mechanical assembly and parallel axis synchronous motion, suitable for high-precision medical and electronic components.
Yes, the Elettrica-S series is specifically engineered for this, with opening and dosing velocities up to 1,500 mm/s and injection speeds up to 500 mm/s, suited for disposable food containers, thin-walled cups, and medical closures.
Yes, the Elettrica-E series features the EP700 controller with EtherCAT bus synchronization and native OPC-UA and Modbus-TCP protocol support, enabling direct integration with MES and ERP smart factory systems.
